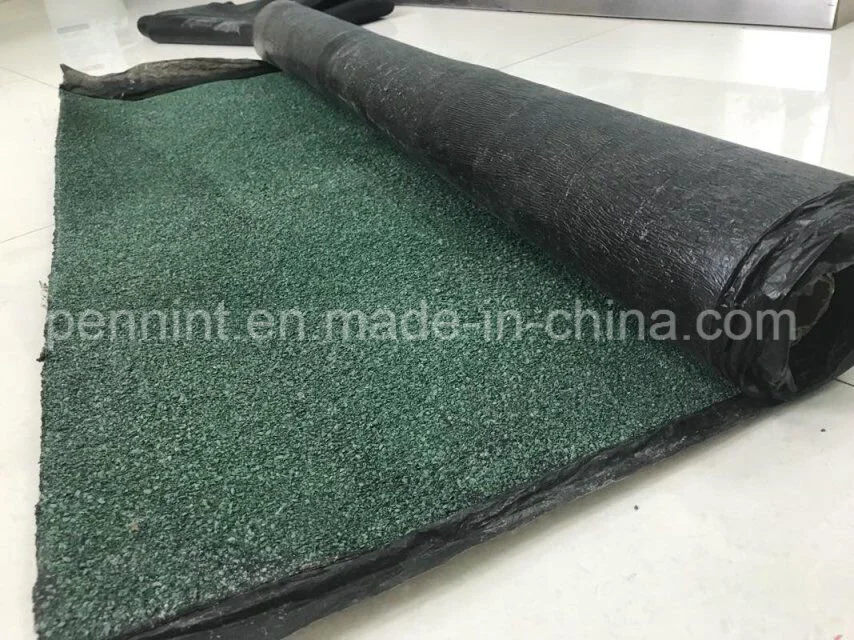

Aluminium Torch-on High Efficiency Bituminous Waterproofing Membrane
- Production instruction
SBS(Styrene Butadiene Styrene) modified bitumen membrane is made by saturating the base in bitumen, or thermoplastic elastomer (such as styrene butadiene-SBS), reinforced with polyester or fiberglass, finishing the upward face with fine sands, mineral slates (or grains) or polythene membrane etc.
Characteristics - Good waterproof performance;
- High tensile and tearing strength, elongation and size stability which accommodates substrate movement and deformation;
- Anti-corrosion, mildew resistant and weather resistant;
- Anti-puncture and rooting resistant, fatigue resistant;
- Hot melt construction, solid and long-lasting;
- SBS modified bitumen membrane is specially applied in the cold district, while APP modified bitumen membrane is more suitable for hot district with high temperature.
- Roof and underground in industrial and civil buildings;
- bridge, subway, tunnel, swimming pool, etc.
- Waste landfill, sewage plant, irrigation system, etc.
| No. | Item | I | II | |||||||
| PY | G | PY | G | PYG | ||||||
| 1 | Soluble content/(g/m2)≥ | 3mm | 2100 | |||||||
| 4mm | 2900 | |||||||||
| 5mm | 3500 | |||||||||
| Test | No flame | No flame | ||||||||
| 2 | Heat resistance | ºC | 90 | 105 | ||||||
| ≤mm | 2 | |||||||||
| Test | No flow, no dripping | |||||||||
| 3 | Low temperature flexibility/ºC | -20 | -25 | |||||||
| No crack | ||||||||||
| 4 | Impermeability 30minutes | 0.3MPa | 0.2MPa | 0.3MPa | ||||||
| 5 | Tension | Maximum/(N/50mm) | 500 | 350 | 800 | 500 | 900 | |||
| Secondly-Maximum | 800 | |||||||||
| Test | No crack, no apart | |||||||||
| 6 | Elongation | Maximum/%≥ | 30 | 40 | ||||||
| Secondly-Maximum≥ | 15 | |||||||||
| 7 | Oil Leaking | Pieces≤ | 2 | |||||||
Application:
Roof and underground in industrial and civil buildings; bridge, subway, tunnel, swimming pool, etc. Waste landfill, sewage plant, irrigation system, etc. SBS modified bitumen membrane is specially applied in the cold district, while APP modified bitumen membrane is more suitable for hot district with high temperature. High tensile and tearing strength, elongation and size stability which accommodates substrate movement and deformation; Anti-corrosion, mildew resistant and weather resistant; Anti-puncture and rooting resistant, fatigue resistant; Hot melt construction, solid and long-lasting;
