Product Description

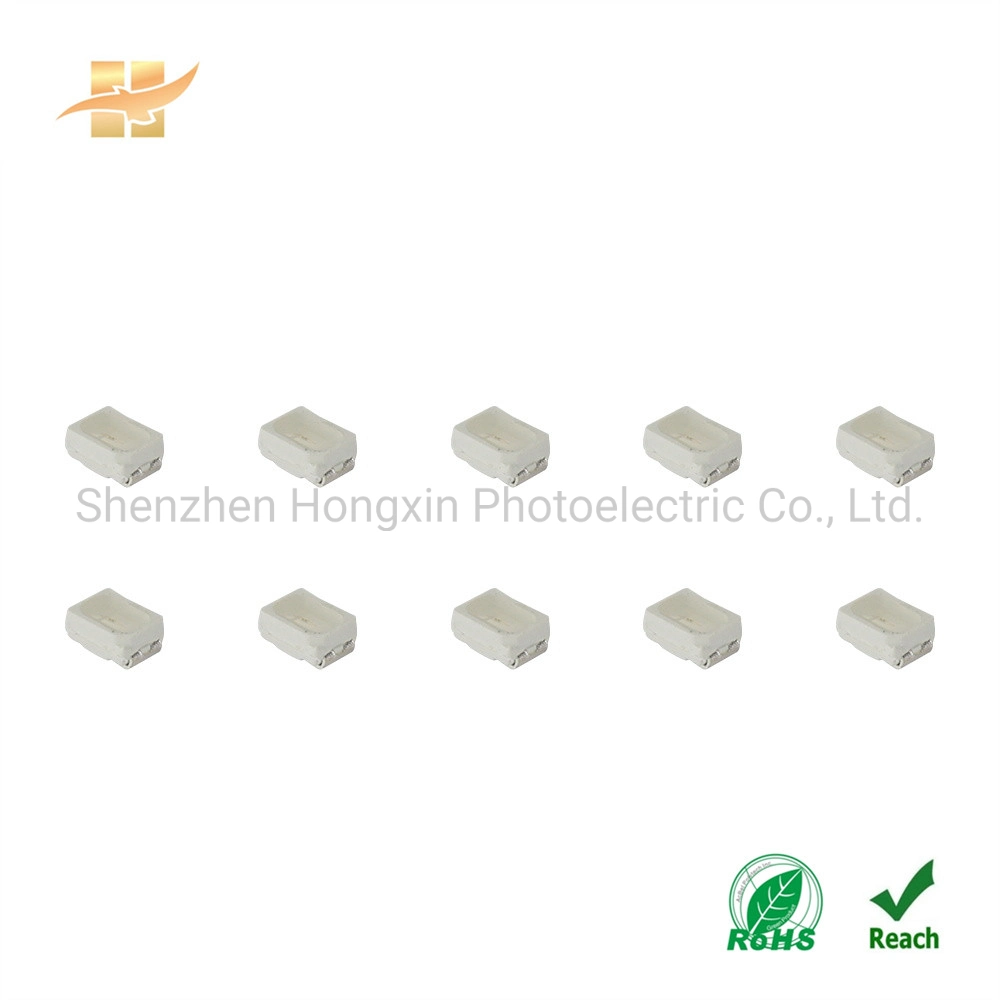

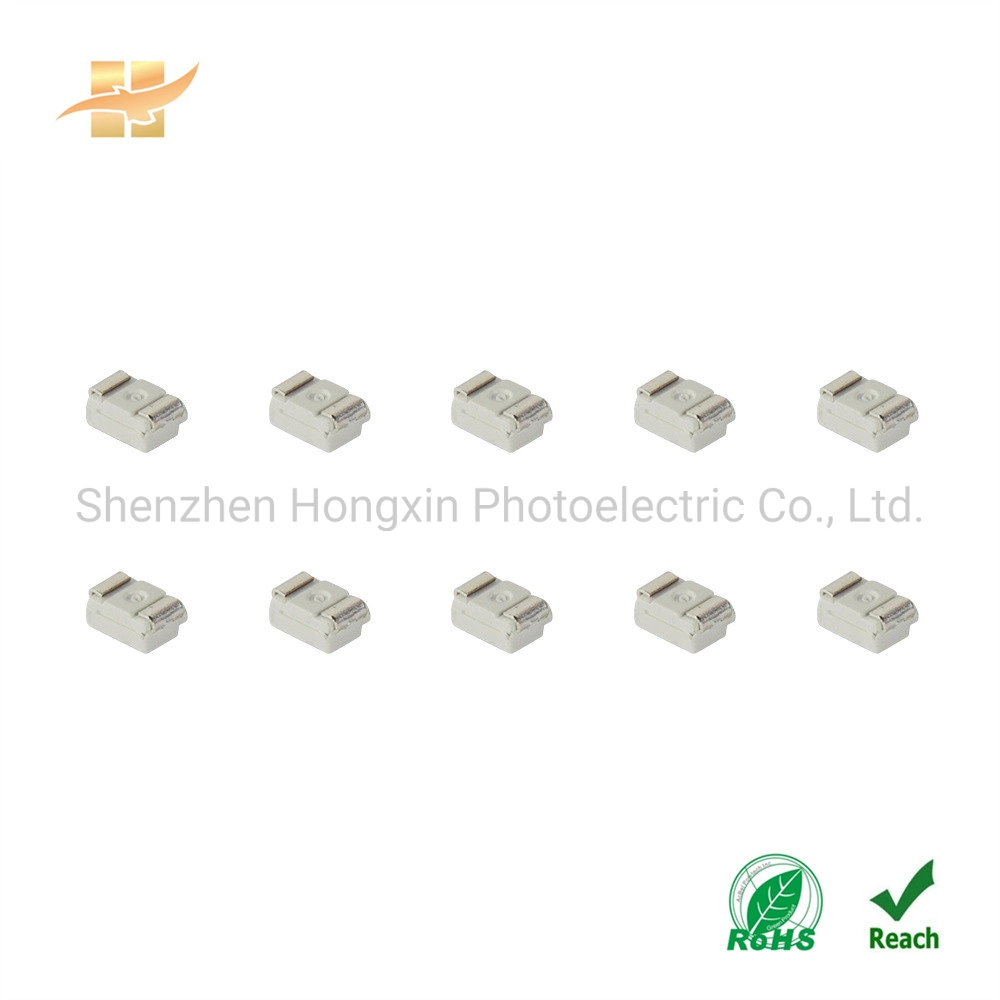

product picture
![SMD LED 3020 Blue Free Sample SMD LED Chip for LED Lamp](https://img2.grofrom.com/chilighttw/6cba6ac33d22c2cd8c33518cce3b4dc2.webp)
![SMD LED 3020 Blue Free Sample SMD LED Chip for LED Lamp](https://img2.grofrom.com/chilighttw/89784282b46374d849ff550bf52650cc.webp)
Feature and Benefits
1,EIA STD Package
2,Meet ROHS, Green Product
3,Compatible With SMT Automatic Equipment
4,Compatible With Infrared Reflow Solder Process
5,Wide viewing angle : 120°
Color Map
![SMD LED 3020 Blue Free Sample SMD LED Chip for LED Lamp](https://img2.grofrom.com/chilighttw/816a89ffe826c6eddc1c3e8b3925da45.webp)
![SMD LED 3020 Blue Free Sample SMD LED Chip for LED Lamp](https://img2.grofrom.com/chilighttw/3379147d6ad7e57216e3bf4f4d4e40ff.webp)
Details
Product Name | HX-3020 |
packing side | 3.0*2.0 mm |
Color | Blue light |
MOQ | 3000pcs |
Payment terms | T/T,Western union |
Notes:1,All dimensions are in millimeters
2,Tolerance is ± 0.10 mm unless otherwise noted
Absolute Maximum Ratings(Ta=25ºC)
Parameter | Symbol | Rating | Unit |
Forward current | IF | 20 | mA |
Reverse voltage | VR | 5 | V |
Operating temperature | TOPR | -30~+85 | ºC |
Storage temperature | TSTG | -40~+100 | ºC |
Power dissipation | PD | 60 | mW |
Electrical Optical Characteristics (Ta=25ºC)
Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit |
Reverse current | IR | VR=5V | / | / | 5 | μA |
Forward voltage | VF | IF=20mA | 3.0 | / | 3.2 | V |
Colour temperature | Tc | 10000 | / | 15000 | K | |
Colour rendering index | Ra | 70 | / | / | / | |
Luminous flux | Φv | 300 | / | 420 | mcd | |
View angle | 2θ1/2 | / | 120 | / | deg. |
Soldering Profile Suggested
Reflow Soldering: Use the conditions shown in the under Figure of Pb-Free Reflow Soldering.
![SMD LED 3020 Blue Free Sample SMD LED Chip for LED Lamp](https://img2.grofrom.com/chilighttw/045b9620cda2464b6fd9bb07a08c9169.webp)
Packing & Delivery
Outline dimension
![SMD LED 3020 Blue Free Sample SMD LED Chip for LED Lamp](https://img2.grofrom.com/chilighttw/28c40d4745527d74d90029fd2c856c85.webp)
Notes:All dimensions in mm.
Tolerances unless mentiond is ±0.1mm.
Label Explanation
![SMD LED 3020 Blue Free Sample SMD LED Chip for LED Lamp](https://img2.grofrom.com/chilighttw/60823f5d690175c517b7027cfb5ddf59.webp)
![SMD LED 3020 Blue Free Sample SMD LED Chip for LED Lamp](https://img2.grofrom.com/chilighttw/84d3f8808eeff6d7381c4f67c987d512.webp)
Application
![SMD LED 3020 Blue Free Sample SMD LED Chip for LED Lamp](https://img2.grofrom.com/chilighttw/3026d8a6c746fc8f6ff272a388dabfae.webp)
