Professional Solution for video surveillace apllication

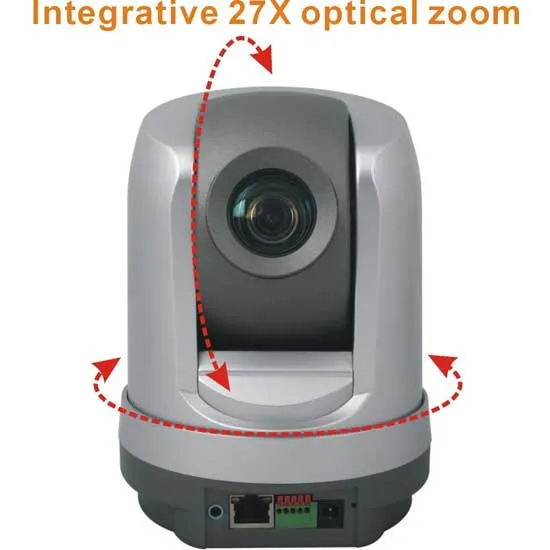

IP Constant Speed Dome PTZ Camera
Zoom: F=3.2- 86.4mm, 27X Optical Zoom
Pan: 355° , Tilt: 100°
1/4" Sony CCD 800TVL H. 264 compression
DI: 720x576 half-D1(576*354) CIF: 352x288 QCIF: 176x144
Built-in POE function(Power Over Ethernet)
Two channel audio: Built-in microphone and you can also connect to pickup
1CH alarm input, 1CH output Alarm
10/100M BPS high-speed Ethernet automatic detection
Motion detection, can be set to the e-mail notify or transmit images to FTP
No need to install this camera near a power source, power and data are received through a single Ethernet Cable
IP Constant Speed Dome PTZ Camera
Zoom: F=3.2- 86.4mm, 27X Optical Zoom
Pan: 355° , Tilt: 100°
1/4" Sony CCD 800TVL H. 264 compression
DI: 720x576 half-D1(576*354) CIF: 352x288 QCIF: 176x144
Built-in POE function(Power Over Ethernet)
Two channel audio: Built-in microphone and you can also connect to pickup
1CH alarm input, 1CH output Alarm
10/100M BPS high-speed Ethernet automatic detection
Motion detection, can be set to the e-mail notify or transmit images to FTP
No need to install this camera near a power source, power and data are received through a single Ethernet Cable
| Serial no. | type | specification |
| 27X all-in-one camera | Image Sensor | 1/4 SONY CCD, 800TVL |
| focus | 3.2 - 86.4mm | |
| Min. illumination | 0.1LUX / F1.2 | |
| Video | Compressed format | H. 264 |
| Resolution | D1(720× 576) Half-D1(576× 354) CIF(352× 288) QCIF(176× 144) | |
| Max frames per second | 30fps@D1(NTSC) 25fps@D1(PAL) | |
| Audio | Audio encoding format | G. 711 ADPCM |
| Microphone | Built-in microphone, and you can also connect to pickup | |
| Software | WEB IE Browser | IE 6.0 or higher |
| Security | Password protection, 3 levels visitors | |
| Hardware | CPU | 32 Bit ARM9 RISC Core |
| Operate System | Embedded eCos system | |
| DDR | 256M | |
| Flash memory | 32M | |
| Internet | Net port | 10/100M Ethernet Port (RJ45) |
| Net protocol | TCP/IP. UDP. HTTP. DHCP. PPPoE. FTP. UPNP. DDNS. SMTP. NTP. TFTP | |
| Outside port | GPIO port | 1ch input alarm, 1ch output alarm |
| RS-485 | Yes | |
| SD Card | Support | |
| Video port | 1ch output video (Multiple video format NTSC/PAL) | |
| Audio port | 1ch input audio | |
| PTZ | Visual angle | Pan: 355° , Tilt: 100° |
| Rotation speed | 12° /s | |
| Settings | Built-in decoder board and protocol, no need to dial code again which means you can use directly | |
| Function | OSD | support |
| DDNS | Have professional Viewipcam. net and many other international famous server for your choosing | |
| User management | Administrator, common user, anonymous user. (Max. viewer: 10) | |
| video adjustment | brightness, contrast and saturation | |
| Bandwidth | By adjusting the compression, frame and resolution, it can be used to different bandwidth | |
| Motion detection | Motion detection alarm can send pictures to the appointed Email or send AV video to appointed FTP. You can setup the alarm time and area as you like | |
| General | Power supply | Input AC 100-240 V 50/60Hz Output DC 12V/1.5A |
| Work Environment | Temperature: -10 -55 Humidity: 0%-80%RHG | |
| Power | 8.5W | |
| Dimension | 166mm(L) X142mm(W) X170mm(H) | |
| Weight | 1.0Kg |
