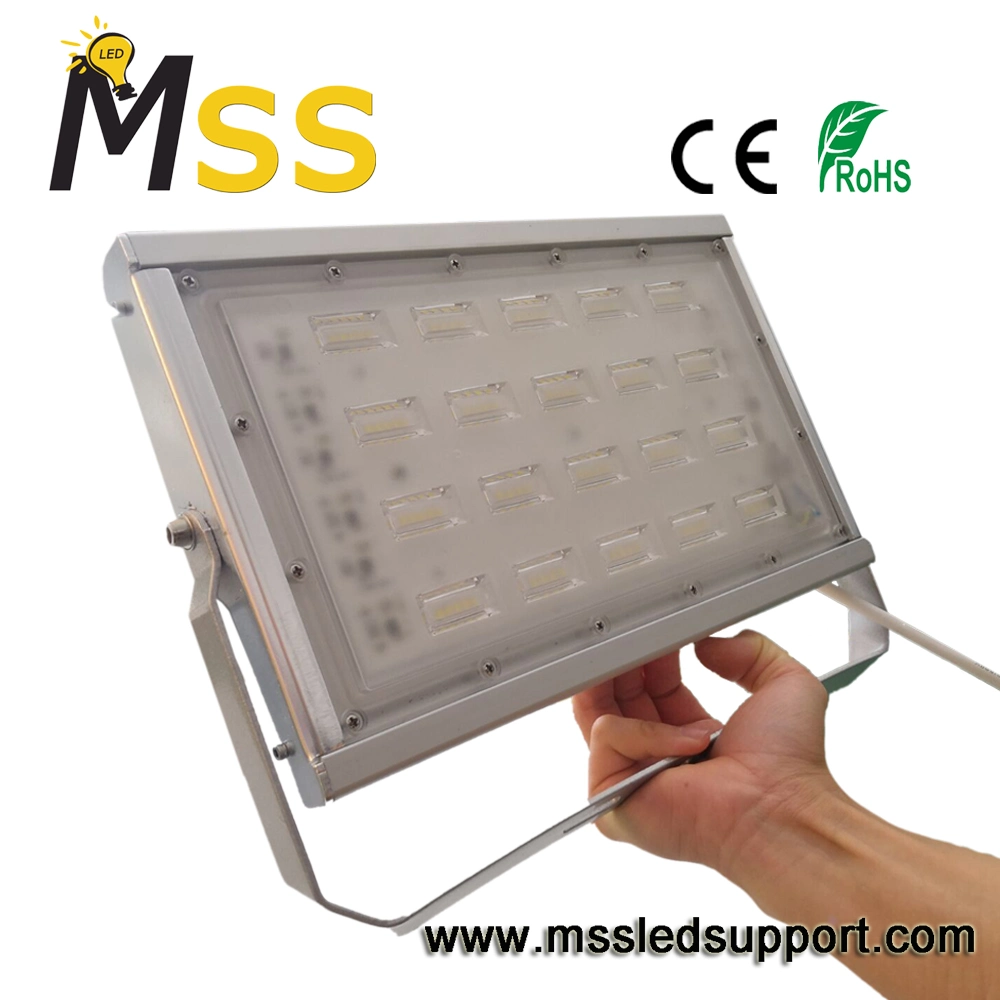

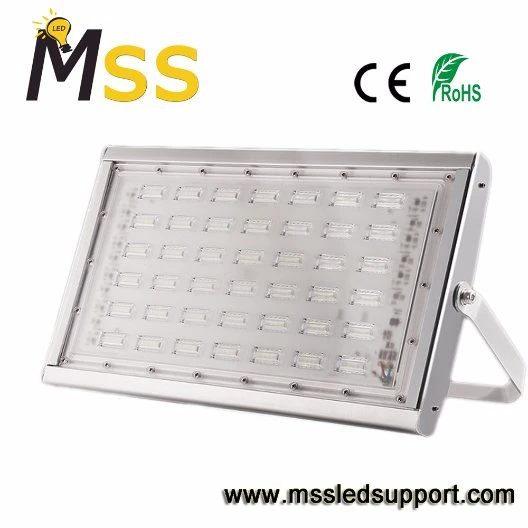

Good Heat Sink LED Flood Lamp Ultra Slim 200W LED Flood Lamp

Product Features

1. Curve design of the lamp back.
2. Frameless design with clips to fasten the glass.
3.Increase light-emitting area, better for heat dissipation.
4.Built-in resistance against lightning surge of 2000V

Basic Parameter


Advantages

Professional optical design,rectangular facula is suitable for more applications instead of traditional round facula.



The best light shape for buildings and outdoor advertisement.



PC  Lens and IK10 level for whole lamp.
(Traditional floodlight normally use glass. The bigger wattage needs bigger glass. Most flood light on the market said they are with IK08. But it is uncertain with high wattage like 80W, 100W etc.Besides, the glass is very easy to be broken during transportation. PC materials with high strength and elastic coefficient, high impact strength, not easy to be damaged.)



6063-T5 aluminum lamp body with high heat conduction and large heat dissipation area.

(High heat conductivity coefficient. The heat conductivity coefficient of aluminum 6063 is 201W/mK, while ADC 12 is 96W/mK, which is twice as ADC12.
Large heat dissipation area. High power LED Lamps have high requirement for heat dissipation. For this lamp we add cooling fins to increase the heat dissipation area.)



Bracket folding design, easy to install.
(Bracket with fixed Angle of 20 °, the lamp body will not block the screws' fixing, convenient for installation)



Ultrathin desgin, reduce shipping cost.

Size of 100W : 344*240*36mm, Single box size: 360*45*250mm
Size of 150W : 408*280*42mm, Single box size: 420*50*290mm
Size of 200W : 472*322*48mm, Single box size: 490*60*330mm



Application

1. Stage, Advertising Board, Billboard,Gym, Stadium, Dock.
2. Yard, Lawn, Garden, Park, Plaza, Workshop, Warehouse.
3. Gas Station, Highway Toll Station etc.
